Compare Barudan Models

Multi-head Models from 4 to 8 heads with 15 needles per head

Absolutely! - That’s one of the great advantages of Barudan. Once you know how to run a single head Barudan machine then a multi-head machine is easy as pie. Most of our customers started with a small Barudan machine but then found that their business grew quickly and they needed more production and reduced cost per logo.

I’m

getting

really

busy

so

I’ll

sell

my

1

head

and

buy

a

bigger

multi-head

machine

You

wouldn’t

be

alone

if

you

thought

that

was

a

good

plan but in the embroidery business ….. this rarely happens. Let me explain why……

It’s because just about every embroidery business needs at least one single head machine because it is the perfect size for both small orders and for samples. You’d be throwing money away if you were to use a multi- head machine for running small quantities. So whether you choose a single head Barudan with 15 needles or a multi-head, high production model, you can rest assured that the quality and reliability are never compromised.

Every Barudan Machine Is Hand-Built & Thoroughly Tested

They are designed to be run for up to 24/7. The question is..….Can you keep up with your Barudan? All internal mechanical parts and electronic control systems are made to the same very high standards. In fact many sewing parts are interchangeable between the models. The operating controls are the same, so operators can move easily from one machine to another without additional training

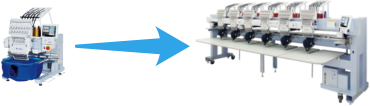

Can I Start Small And Grow My Business With Barudan?

BEKT S1501 CA11 - Compact Single Head

BEKT S1501 CB111 - Large Field Single Head

A Double set of Garment Hoops For Every Head
Main features * Up to 1,200 s.p.m * 15 needles * 250 x 400 embroidery area * 100 design internal memory * 2 x USB ports * 1 x LAN network port Hoops included: 2 x 12cm round 2 x 15cm round 2 x 240 x 240 2 x 300 x 430 1 x cap driver unit 1 x cap loading jig 2 x cap holding hoops
Specifications 240 volts 1 Ph Width = 780 mm Depth = 690 mm (without table) Height = 960 mm (without stand) Weight = 73Kgs Options * Machine stand * Flat table and sash frame * Wilcom embroidery software * Pocket embroidery hoop * Mighty Magnetic hoops * Network connection software * Bar code reader
Main features * Up to 1,300 s.p.m * 15 needles * 360 x 500 embroidery area * 100 design memory * 2 x USB ports * 1 x LAN network port * Industrial strength stand Hoops included: 2 x 12cm round 2 x 15cm round 2 x 18cm round 2 x 240 x 240 2 x 330 x 438 2 x 380 x 438 1 x cap driver unit 1 x cap loading jig 2 x cap holding hoops
Specifications 240 volts 1 Ph Width = 845 mm Depth = 795 mm (without table) Height = 935 mm (without stand) Weight = 96 Kgs Options * Flat table and sash frame * Wilcom embroidery software * Pocket embroidery hoop * Mighty Magnetic hoops * Network connection software * Bar code reader
1 x Cap Driver and 2 Cap Hoops Per Head + Loading Jig

Multi-head Models from 12 to 20 heads with 15 needles per head

One hoop in the machine and one extra to get the next garment hooped and ready while the machine is running.

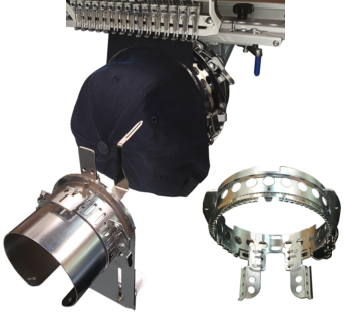

Designed especially for best quality and maximum design size on caps. Now with Barudan’s quick release mechanism (no tools required)
Embroidery Source P/L 2020
Colin Hargreaves / William Hargreaves p: 021 394 357
New Zealand
NSW & ACT Rob Stras p: 0432 555 845 Jayden Cormick p: 0432 521 154
QLD Richard Turner p: 0439 788 066
Sales & Technical Support
p: 1800 137 670 or 03 9499 9492
Opening hours Mon to Friday 8:30am - 5:00pm
Melbourne Showroom & Warehouse

VIC, TAS, NT

Gary Busst

p: 0417 118 758

Steven McGarry

p: 0417 391 576

Steve Walsh

p: 0401 429 389

SA Steven McGarry p: 0417 391 576
205 Fulham Rd, Fairfield 3078, Victoria

Hoops Supplied

(Hoop sizes may vary between different models)
WA Dylan Madeiros p: 04150 101 750
CONTACT US
Embroidery Source P/L 2020
CLICK TO CONTACT

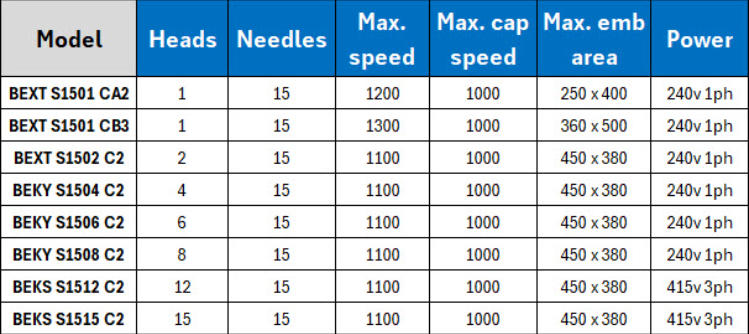

Compare The Different Barudan Models
Multi-head Models from 12 to 20 heads with 15 needles per head
Multi-head Models from 4 to 8 heads with 15 needles per head
Designed especially for best quality and maximum design size on caps. Now with Barudan’s quick release mechanism (no tools required)
Quick Change Cap Hoops & Driver
One hoop in the machine and one extra to get the next garment hooped and ready while the machine is running.
Double sets of Garment Hoops
Main features Up to 1,300 s.p.m 15 needles 360 x 500 embroidery area 100 design memory 2 x USB ports 1 x LAN network port Industrial strength stand Hoops included: 2 x 12cm round 2 x 15cm round 2 x 18cm round 2 x 240 x 240 2 x 330 x 438 2 x 380 x 438 1 x cap driver unit 1 x cap loading jig 2 x cap holding hoops Specifications 240 volts 1 Ph Width = 845 mm Depth = 795 mm (without table) Height = 935 mm (without stand) Weight = 96 Kgs Options Flat table and sash frame Wilcom embroidery software Pocket embroidery hoop Mighty Magnetic hoops Network connection software Bar code reader
BEKT S1501 CB111 - Large Field Single Head
Main features Up to 1,200 s.p.m 15 needles 250 x 400 embroidery area 100 design internal memory 2 x USB ports 1 x LAN network port Hoops included: 2 x 12cm round 2 x 15cm round 2 x 240 x 240 2 x 300 x 430 1 x cap driver unit 1 x cap loading jig 2 x cap holding hoops Specifications 240 volts 1 Ph Width = 780 mm Depth = 690 mm (without table) Height = 960 mm (without stand) Weight = 73Kgs Options Machine stand Flat table and sash frame Wilcom embroidery software Pocket embroidery hoop Mighty Magnetic hoops Network connection software Bar code reader
BEKT S1501 CA11 - Compact Single Head
Maybe I’ll sell my 1 head Barudan and buy a bigger machine instead That sounds like a sensible plan, but in the embroidery service business ….. this rarely happens. That’s because every embroidery business needs at least one single head machine. A single head machine is the perfect size for both small orders and for samples. You’d be throwing money away if you use a multi-head machine for running small quantities. So whether you choose a single head Barudan or a multi-head, model, you can rest assured that the quality and reliability are never compromised. Every Barudan machine is designed and built to be run 24/7 The question is….Can you keep up with your Barudan? All internal, mechanical parts and electronic control systems are made to the same very high standards. In fact many sewing parts are interchangeable between the models. The operating controls are the same, so operators can move easily from one machine to another without additional training
Absolutely! - That’s one of the great advantages of Barudan. Once you have learned how to run a single head Barudan machine, a multi-head machine is easy. Many of our customers started with a small Barudan machine but then found that their business grew quickly and they needed more production speed and reduced cost per logo.
Can I Start Small & Grow My Business With Barudan?
